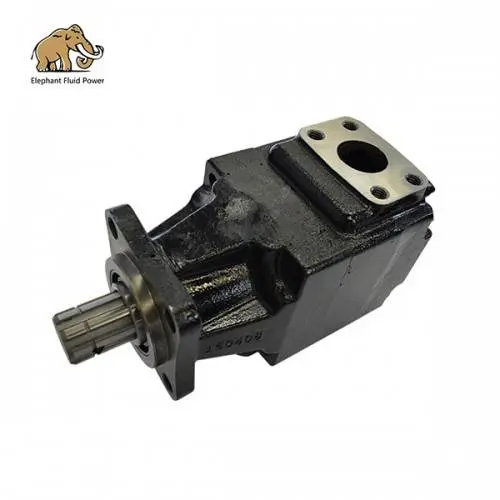

Details of Hydraulic Vane Pumps T6 T7 Series
Model 1: T6, T7 Series-single pumps
Model 2: T6, T67, T7 Series double pumps
Model 3: T6, T67, T7 Series triple pump
Model 4: T6GC, T7GB Series-vane pumps
Series | Type code | Flow code | Shaft type | Rotation | Port positions | Design number | Sealing Level | Port dimensions |
T7B | N0: ISO 3019
Installation Flange S: SAE J744
Installation Flange | B02, B03, B04, B05, B06, B07, B08, B10, B12, B15 | See of shaft | （Views from shaft end of pump） right hand for clockwise left hand for counter-clockwise | （Views from shaft end of pump） Opposite inlet port Linline with inlet 90° CCW from inlet 90° CW from inlet | A | NBR Nitrile rubber Fluoro-rubber | See installation dimensions |
T7D | B14, B17, B20, B22, B24, B28, B31, B35, B38, B42 |
T7E | 042, 045, 050, 052, 054, 057, 062, 066, 072, 085 | No |
T6C | NO: industrial type M: truck type P: truck type double seal kits | 003/B03, 005/B05, 006/B06, 008/B08, 010/B10, 012/B12, 014/B14, 017/B17, 020/B20, 022/B22, 025/B25, 028/B28, 031/B31 |
T6D | 014/B14, 017/B17, 020/B20, 024/B24, 028/B28, 031/B31, 035/B35, 038/B38, 042/B42, 045/B45, 050/B50, 061 |
T6E | 042, 045, 050, 052, 057, 062, 066, 072, 085 |
NO: USE IOS 3019 installation flange
S: USE SAE C J744 Installation flange W: Heavy strkeyed shaft
Views from shaft end of pump
see picture above
T6CC | S | w | -25 | -17 | -1 | R | 2 | -C | 1 | 10 |
series | Typecode | ViceType | Flow-shaftend pump | Flow-coverend pump | shafttype | Rotation | Portpositions | Designnumber | Sealinglevel | Portdimensions |
|
code |
T7BB | NO: USE IOS 3019installation flange | NO | B02 B03B04 B05B06 B07B08 B10B12 B15 | B02 B03B04 B05B06 B07B08 B10B12 B15 | see safe of shaft | Views from shaft end of pumpright hand from for clockwiseleft hand from for clockwise | see picture above | C | 1-s1NBR Nitrile rubberFluoro-rubber | 00, 01, See installationdimensions |
T7DB |
| B14 B17B20 B22B24 B28B31 B35B38 B42 | B02 B03B04 B05B06 B07B08 B10B12 B15 | 00, 01, M1Seeinstallationdimensions |
T7DD | S: USE SAE C J744Installation flange | B14 B17B20 B22B24 B28B31 B35B38 B42 | B14 B17B20 B22B24 B28B31 B35B38 B42 | NO |
T7EB |
| 042 045050 052054 057062 066072 085 | B02 B03B04 B05B06 B07B08 B10B12 B15 |
T7ED |
| 042 045050 052054 057062 066072 085 | B14 B17B20 B22B24 B28B31 B35B38 B42 |
T7EE |
| 042 045050 052054 057062 066072 085 | 042 045050 052054 057062 066072 085 |
T67CB | No: industritypeM: trucktypeP: trucktype double seal | W: Heavy strkeyed shaft | 003/B03 005/B05 006/B06 008/B08 010/B10 012/B12 014/B14 017/B17 020/B20 022/B22 025/B25 028/B28 031/B31 | B02 B03 B04 B05 B06 B07 B08 B10 B12 B15 |
T6CC |
| 003/B03 005/B05 006/B06 008/B08 010/B10 012/B12 014/B14 017/B17 020/B20 022/B22 025/B25 028/B28 031/B31 | 003/B03 005/B05 006/B06 008/B08 010/B10 012/B12 014/B14 017/B17 020/B20 022/B22 025/B25 028/B28 031/B31 | See installation dimensions |
T67DB |
| 014/B14 017/B17 020/B20 024/B24 028/B28 031/B31 035/B35 038/B38 042/B42 045/B45 050/B50 061 | B02 B03 B04 B05 B06 B07 B08 B10 B12 B15 | NO |
T67DC |
| B14 B17 B20 B22 B24 B28 B31 B35 B38 B42 | 003/B03 005/B05 006/B06 008/B08 010/B10 012/B12 014/B14 017/B17 020/B20 022/B22 025/B25 028/B28 031/B31 |
T6DC | kitsS: truck type useSAE C J744 installation flange | 014 017 020 024 028 031 035 038 042 045 050 061 | 003/B03 005/B05 006/B06 008/B08 010/B10 012/B12 014/B14 017/B17 020/B20 022/B22 025/B25 028/B28 031/B31 | See installation dimensions |
T67EB |
| 042 045 050 052 054 057 062 066 072 085 | B02 B03 B04 B05 B06 B07 B08 B10 B12 B15 | NO |
T6EC |
| 042 045 050 052 054 057 062 066 072 085 | 003/B03 005/B05 006/B06 008/B08 010/B10 012/B12 014/B14 017/B17 020/B20 022/B22 025/B25 028/B28 031/B31 |
T67EC |
| 042 045 050 052 054 057 062 066 072 085 | 003/B03 005/B05 006/B06 008/B08 010/B10 012/B12 014/B14 017/B17 020/B20 022/B22 025/B25 028/B28 031/B31 |
T6ED |
| 042 045 050 052 054 057 062 066 072 085 | 014/B14 017/B17 020/B20 024/B24 028/B28 031/B31 035/B35 038/B38 042/B42 045/B45 050/B50 061 |
T6EE |
| 042 045 050 052 054 057 062 066 072 085 | 042 045 050 052 054 057 062 066 072 085 |
003/B003: In displacement code, 0 means single steering valve plate structure, B means the two steering valve plate structure.
The data of relevant series, model are unanimous. Please see T6 series-signle pumps data.
T67DBB | No: industri type M: truck type S: truck type useSAE C J744 installation flange | 014/B14 017/B17 020/B20 024/B24 028/B28 031/B31 035/B35 038/B38 042/B42 045/B45 050/B50 061 | B02 B03 B04 B05 B06 B07 B08 B10 B12 B15 | B02 B03 B04 B05 B06 B07 B08 B10 B12 B15 | See safe of shaft | Views from shaft end of pump right hand from for clockwise left hand from for clockwise | See picture above | A | 1-s1, NBR Nitrile rubber 5-S5, Fluoro-rubber | NO |
T67DCB | 014/B14 017/B17 020/B20 024/B24 028/B28 031/B31 035/B35 038/B38 042/B42 045/B45 050/B50 061 | 003/B03 005/B05 006/B06 008/B08 010/B10 012/B12 014/B14 017/B17 020/B20 022/B22 025/B25 028/B28 031/B31 | B02 B03 B04 B05 B06 B07 B08 B10 B12 B15 |
T6DCC | 014/B14 017/B17 020/B20 024/B24 028/B28 031/B31 035/B35 038/B38 042/B42 045/B45 050/B50 061 | 003/B03 005/B05 006/B06 008/B08 010/B10 012/B12 014/B14 017/B17 020/B20 022/B22 025/B25 028/B28 031/B31 | 003/B03 005/B05 006/B06 008/B08 010/B10 012/B12 014/B14 017/B17 020/B20 022/B22 025/B25 028/B28 031/B31 | 00, 01, See installation dimensions |
T67DDB | 014/B14 017/B17 020/B20 024/B24 028/B28 031/B31 035/B35 038/B38 042/B42 045/B45 050/B50 061 | 014/B14 017/B17 020/B20 024/B24 028/B28 031/B31 035/B35 038/B38 042/B42 045/B45 050/B50 061 | B02 B03 B04 B05 B06 B07 B08 B10 B12 B15 | NO |
T6DDC | 014/B14 017/B17 020/B20 024/B24 028/B28 031/B31 035/B35 038/B38 042/B42 045/B45 050/B50 061 | 014/B14 017/B17 020/B20 024/B24 028/B28 031/B31 035/B35 038/B38 042/B42 045/B45 050/B50 061 | 003/B03 005/B05 006/B06 008/B08 010/B10 012/B12 014/B14 017/B17 020/B20 022/B22 025/B25 028/B28 031/B31 | 00, 01 See installation dimensions |
T67EDB | 042 045 050 052 054 057 062 066 072 085 | 014/B14 017/B17 020/B20 024/B24 028/B28 031/B31 035/B35 038/B38 042/B42 045/B45 050/B50 061 | B02 B03 B04 B05 B06 B07 B08 B10 B12 B15 | NO |
T6EDC | 042 045 050 052 054 057 062 066 072 085 | 014/B14 017/B17 020/B20 024/B24 028/B28 031/B31 035/B35 038/B38 042/B42 045/B45 050/B50 061 | 003/B03 005/B05 006/B06 008/B08 010/B10 012/B12 014/B14 017/B17 020/B20 022/B22 025/B25 028/B28 031/B31 | 00, 01, 见安装连接尺寸 See installation dimen |
Hydraulic vane pumps and vane motors. We supply a wide range of products, such as Denison T6 series, Denison motor M4C series, Eaton Vickers V, VQ, V10, V20, VTM42 power steering pump series, Eaton Vickers vane motors 25M 35M 45M 50M series, Tokimec SQP series, 50T 150T and Yuken PV2R series. The products are widely applied in mining construction machinery, materials handling equipment, heavy metallurgical machinery, petroleum mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, mineral machinery, construction equipment, and work platform, lawnmowers, special vehicles, fishing winches, machine tools, woodworking and sawing machines, rubber machinery and other machinery in the hydraulic system.
Advantages of Hydraulic Vane Pumps T6 T7 Series
1. Quick response within 12 hours.
2. Accept small order(MOQ:1pcs).
3. Poocca make large inventory of all pumps parts, we can assembly pumps the moment you place the order with most competitive price.
4. Excellent after-sales service.
5. Strict quality control system.100% factory testing and inspection personnel in accordance with international standards for the high-frequency sampling, to ensure the quality of products manufactured.
