SQP Series Vane Pump

Name: SQP Series Vane Pump
Brand: Elephant Fluid Power Co., Ltd.

Elephant Fluid Power: Provide SQP series Hydraulic Vane Pump. We can make varies of hydraulic pumps parts with factory-direct prices and have state of the art machining testing facilities to assist clients with their projects.

Elephant Fluid Power: guarantee quality and appropriate prices, and perfect after-sales service.

Get a Quote 

Products

Details of SQP Series Vane Pump

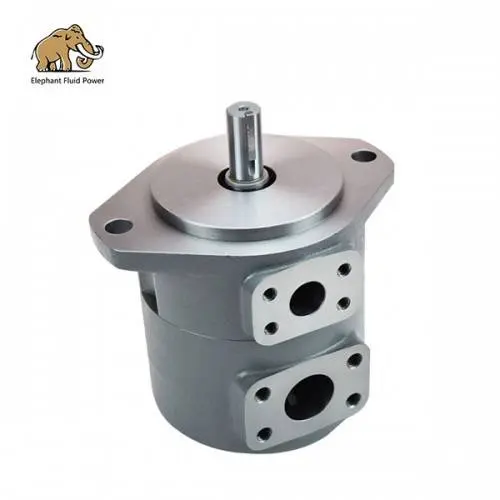

Model 1: SQP Series-single pumps SQP-1,2,3,4

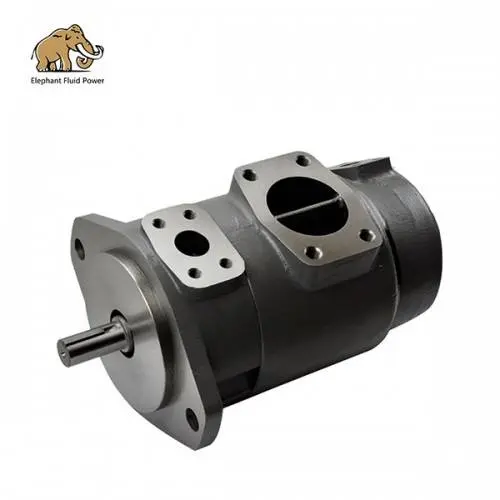

Model2: SQP Series-Double pumps SQP-21,31,32,41,42,43

（F3-）	SQP2	-21	-86	C	（F）	-(LH)	-18
Infuse front oil intermiscibility	Series	Displacement code	Shaft type	Outlet positions	Installation type	Rotation	Design number
No-marking Anti-wear hydraulic oil, water glycol fluid or water-oil emulsionsPhosphate ester fluid	SQP1	2 3 4 5 6 7 8 9 10 11 12 14	1-belt key straight shaft86-Heavybelt key straight shaft	（Viewed from cover end of pump ）A-outlet opposite inletB-outlet 90° CCW from inletC-outlet inline with inlet D-outlet 90° CW from inlet	No-markingFlange mountingF-foot mounting	（views from shaft end of pump) Left hand for counter clockwiseNo-marking-Right hand for clockwise	15
	SQP2	10 12 14 15 17 19 21 25					18
	SQP3	21 25 30 32 35 38 45
	SQP4	42 45 50 57 60 66 75

Usgpm Flow（Usgpm）at1200r/min and 0.69MPa

（F3-）	SQP32	-35	-17	-86	CD	（F）	-(LH)	-18
Infuse front oil intermiscibility	Series	Displacement code of shaft end pump	Displacement code of cover end pump	Shaft type	Port positions	Installation type	Rotation	Design number
No-marking Anti-wear hydraulic oil, water-glycol fluid or water-oil emulsionsPhosphate eater fluid	SQP21	10 12 14 15 17 19 21 25	2 3 4 5 6 7 8 9 10 11 12 14	1-Belt key straight shaft 86-Heavy belt key straight shaft	See picture below	No-marking Flange mounting F-foot mounting	(views from shaft end of pump) Left hand for counter clockwiseNo-marking-Right hand for clockwise	18
	SQP31	21 25 30 32 35 38 45	2 3 4 5 6 7 8 9 10 11 12 14
	SQP32	21 25 30 32 35 38 45	10 12 14 15 17 19 21 25
	SQP41	42 45 50 57 60 66 75	2 3 4 5 6 7 8 9 10 11 12 14
	SQP42	42 45 50 57 60 66 75	10 12 14 15 17 19 21 25
	SQP43	42 45 50 57 60 66 75	21 25 30 32 35 38 45

Usgpm Flow（Usgpm）at1200r/min and 0.69MPa

Hydraulic vane pumps and vane motors. We supply a wide range of products, such as Denison T6 series, Denison motor M4C series, Eaton Vickers V, VQ, V10, V20, VTM42 power steering pump series, Eaton Vickers vane motors 25M 35M 45M 50M series, Tokimec SQP series, 50T 150T and Yuken PV2R series. The products are widely applied in mining construction machinery, materials handling equipment, heavy metallurgical machinery, petroleum mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, mineral machinery, construction equipment, and work platform, lawn mowers, special vehicles, fishing winches, machine tools, woodworking and sawing machines, rubber machinery and other machinery in the hydraulic system.

Features of SQP Series Vane Pump

1. Intervene pumps with hydraulic balancing structure provide more stable performance and longer life since less pressure from vane on stator.
2. Twelve vane system provide low amplitude flow pulsation resulting in low system noise characteristics.
3. Various displacement and shafts with 4 different outlets opposite position make operation more flexible.
4. The cartridge is independent of the drive shaft, allowing for easy serving without remora the pump from its mounting.
